Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad side cover.

    (Refer to Body - "CRASH PAD ")

  3. Remove the lower panel.

    (Refer to Body - "CRASH PAD ")

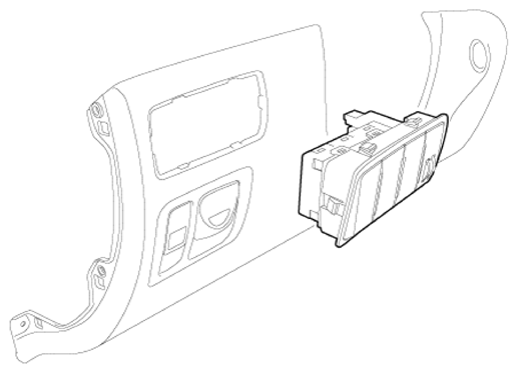

  4. Remove the lower crash pad switch assembly by using the scraper and then disconnect the connectors.
    G14210344Courtesy of HYUNDAI MOTOR AMERICA
  5. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
G14210345Courtesy of HYUNDAI MOTOR AMERICA
