Rear Power Seat Module

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the rear seat frame assembly.

    (Refer to Body - "REAR SEAT ")

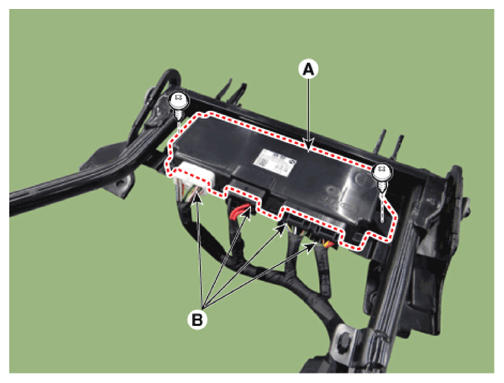

  4. Remove the rear power seat module (A) after loosening the mounting screws and disconnecting the connectors (B).
G14235989Courtesy of HYUNDAI MOTOR AMERICA
