Front Power Seat Module

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the front seat under cover.

    (Refer to Body - "FRONT SEAT ")

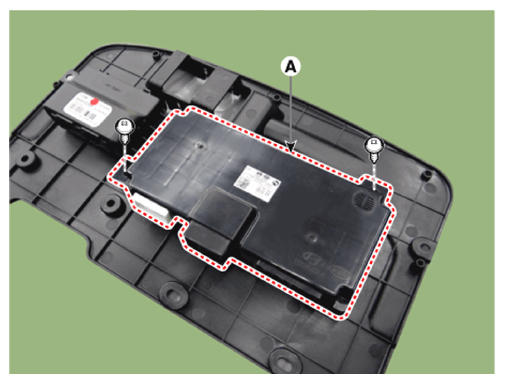

  4. Remove the front power seat module (A) after loosening the mounting screws.
G14235988Courtesy of HYUNDAI MOTOR AMERICA
