Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat assembly.

    (Refer to REAR SEAT ASSEMBLY )

  3. Remove the rear package tray trim.

    (Refer to PACKAGE TRAY TRIM )

  4. Remove the interior 3 antenna (A) after loosening the mounting nuts and disconnecting the connector.

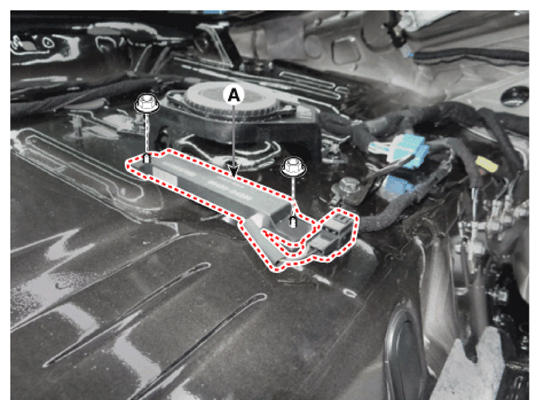

G14235875Courtesy of HYUNDAI MOTOR AMERICA

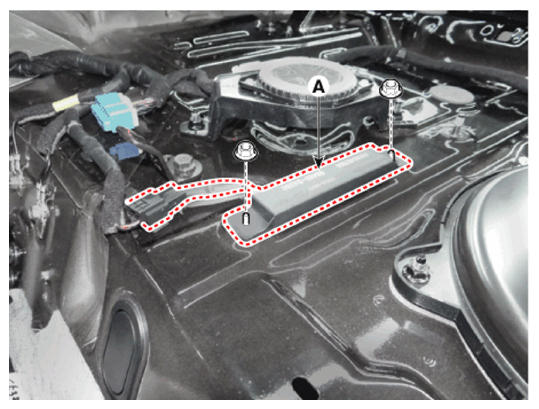

G14235876Courtesy of HYUNDAI MOTOR AMERICA
