Interior 2 Antenna

1. Disconnect the negative (-) battery terminal.
2. Remove the floor console assembly.

   (Refer to FLOOR CONSOLE ASSEMBLY )

   Courtesy of HYUNDAI MOTOR AMERICA

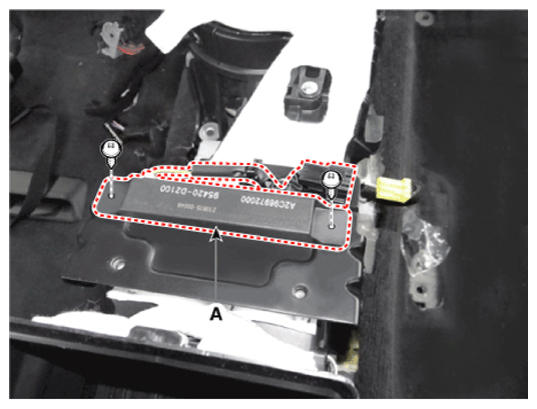

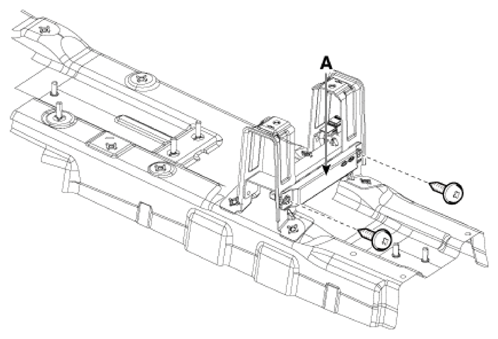

3. Remove the interior 2 antenna (A) after loosening the mounting screws and disconnecting the connector.

[3Zone + type]

Courtesy of HYUNDAI MOTOR AMERICA

[3Zone type]

Courtesy of HYUNDAI MOTOR AMERICA
