Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.

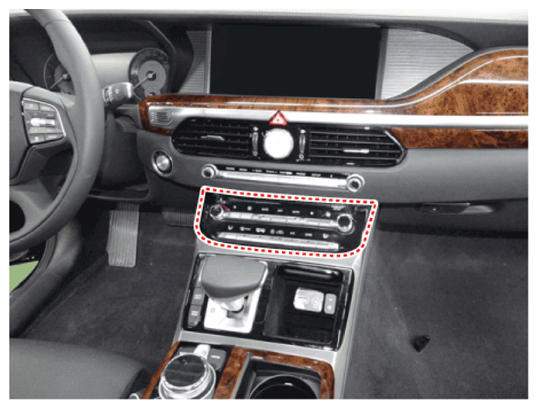

  2. Remove the heater & A/C control unit.

    (Refer to Replacement )

    G14235870Courtesy of HYUNDAI MOTOR AMERICA

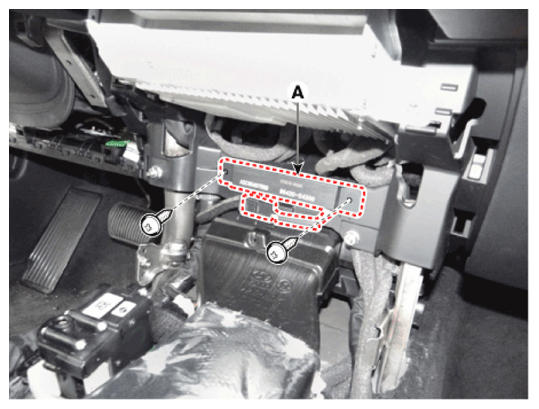

  3. Remove the interior 1 antenna (A) after loosening the mounting screws and disconnecting the connector.
G14235871Courtesy of HYUNDAI MOTOR AMERICA
