Door Outside Handle

  1. Disconnect the negative (-) battery terminal.

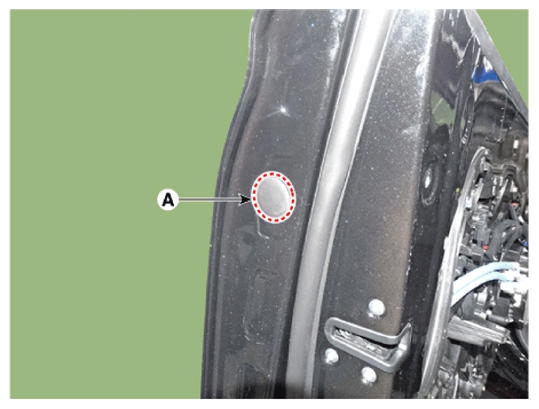

  2. Remove the hole plug (A).
    G14235880Courtesy of HYUNDAI MOTOR AMERICA

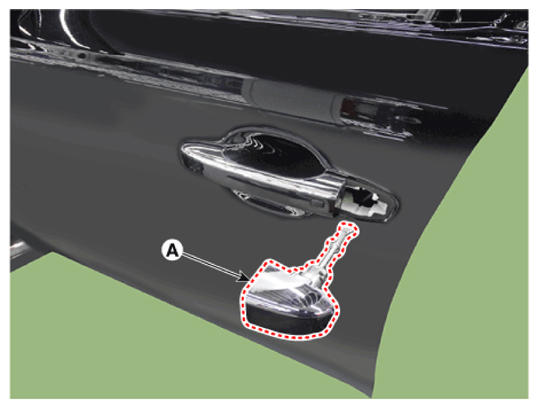

  3. After loosening the mounting bolt, then remove the door lock (A).
    G14235881Courtesy of HYUNDAI MOTOR AMERICA

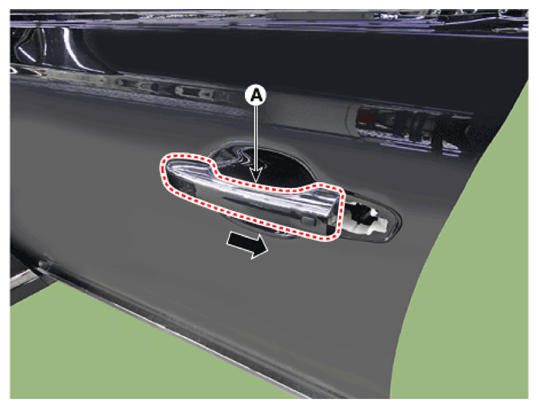

  4. Remove the door outside handle (A) by sliding it rearward.
    G14235882Courtesy of HYUNDAI MOTOR AMERICA

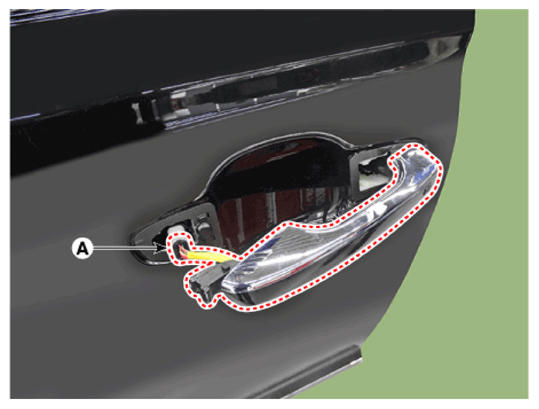

  5. Disconnect the door outside handle connector (A).
    G14235883Courtesy of HYUNDAI MOTOR AMERICA

    Information

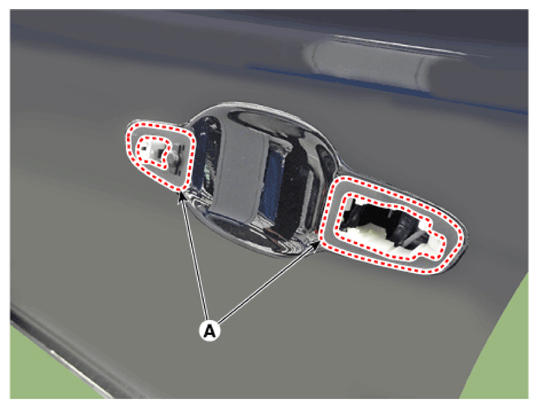

    • Be sure to install the outside handle pad (A) onto between the outside handle and the door panel.
      G14235884Courtesy of HYUNDAI MOTOR AMERICA
    • Make sure the connector is connected properly.
    • Make sure the door locks/unlocks and opens/closes properly.
