FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

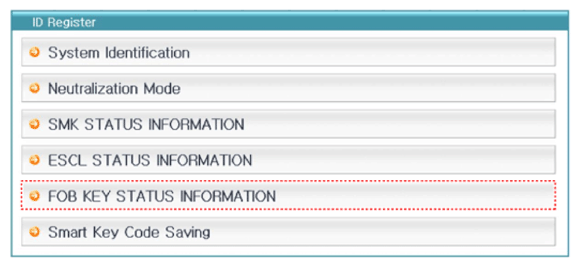

G14235895Courtesy of HYUNDAI MOTOR AMERICA

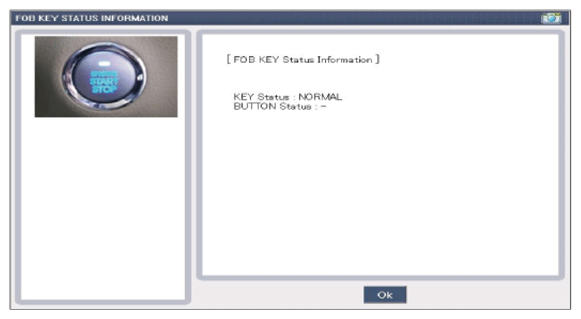

G14235896Courtesy of HYUNDAI MOTOR AMERICA
