Repair Procedures: Removal

  1. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ")

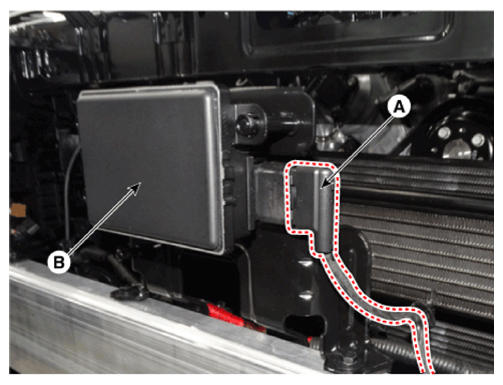

  2. Disconnect the smart cruise control unit connector (A).
  3. Remove the smart cruise control unit assembly (B) from the vehicle after loosening mounting bolts.
    G14207831Courtesy of HYUNDAI MOTOR AMERICA

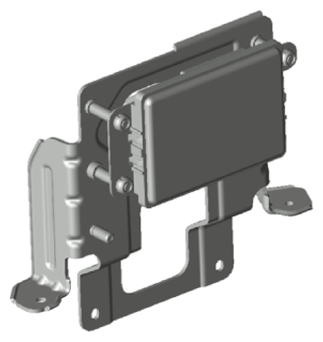

    G14207832Courtesy of HYUNDAI MOTOR AMERICA
