Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

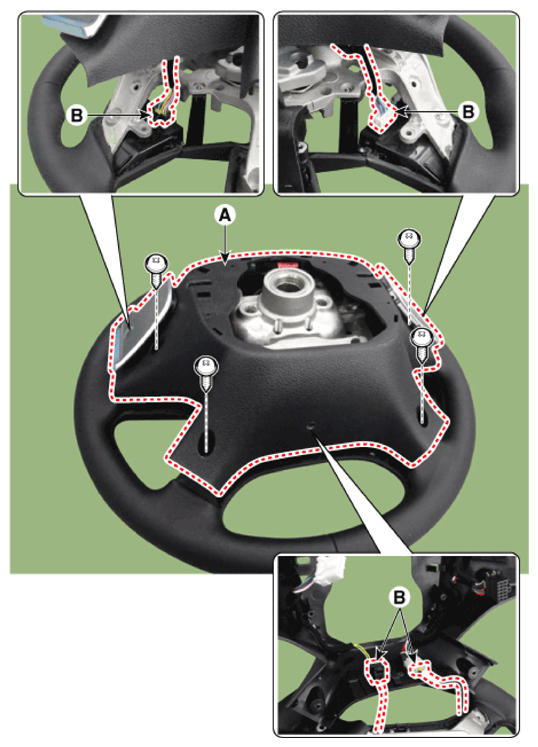

Remove the steering wheel back cover (A) after loosening the screws and disconnecting the connectors (B).

Courtesy of HYUNDAI MOTOR AMERICA

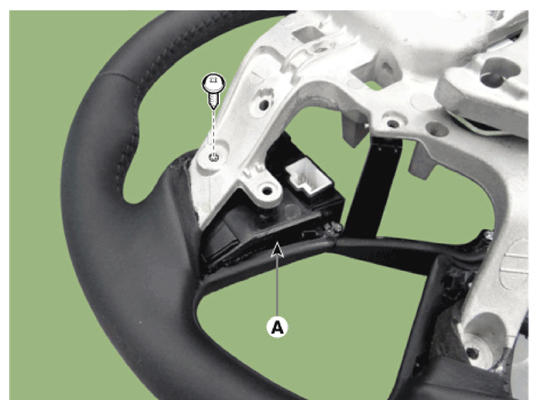

Remove the steering wheel remote control (A) after loosening the mounting screw.

Courtesy of HYUNDAI MOTOR AMERICA
