Section 7 (Timing System - 3.3L)
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

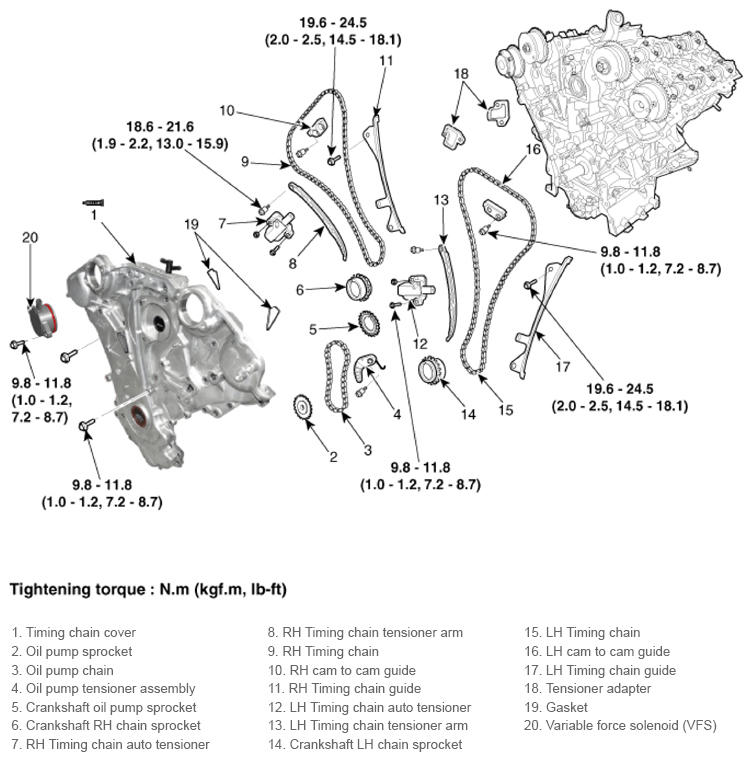

Fig 1: Timing System Components Location With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

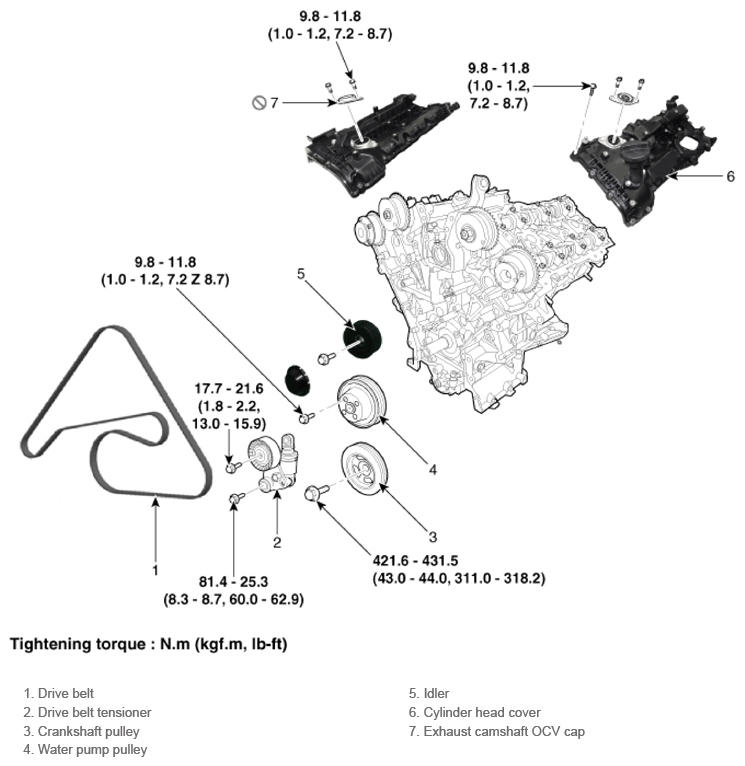

Fig 2: Timing System Components Location With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
