Variable Force Solenoid (VFS) [Bank 2/Intake]

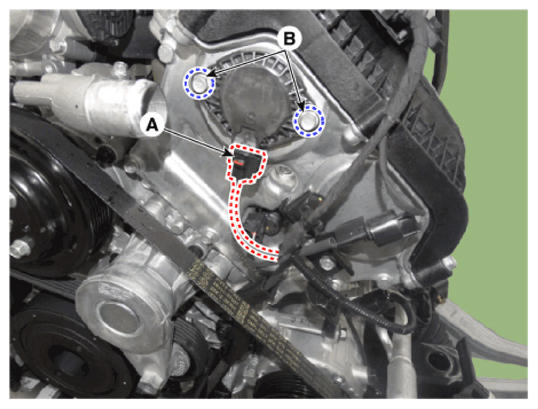

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal
  2. Disconnect the VFS connector (A).
  3. Remove the mounting bolt (B), and then remove the VFS from the engine.
G14237132Courtesy of HYUNDAI MOTOR AMERICA
