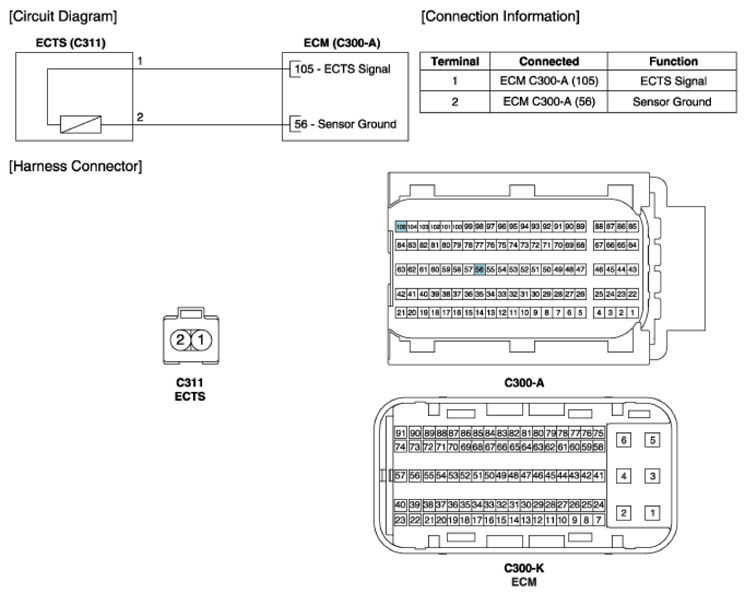

Home >> Genesis >> 2021 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram
