Home >> Genesis >> 2021 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wireless Power Charger System (WPC) >> Wireless Power Charging Unit >> Components And Positions >> Components

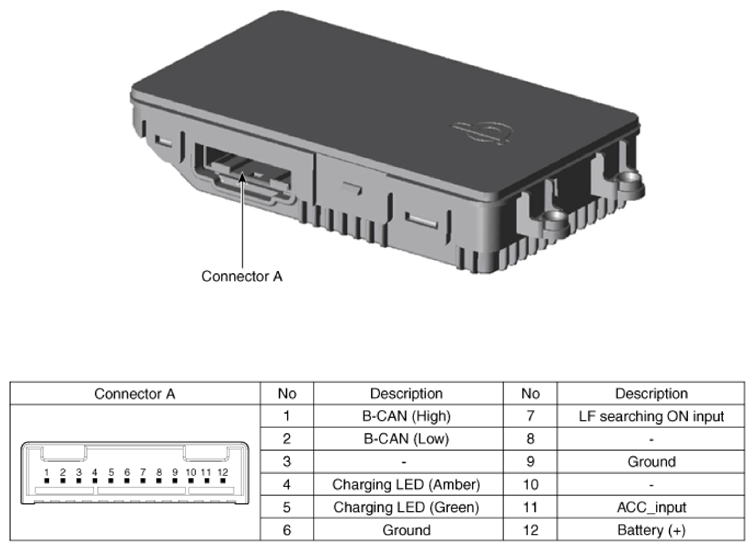

Components And Positions: Components

G14235959Courtesy of HYUNDAI MOTOR AMERICA
