Home >> Genesis >> 2021 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Driver Door Module (DDM)

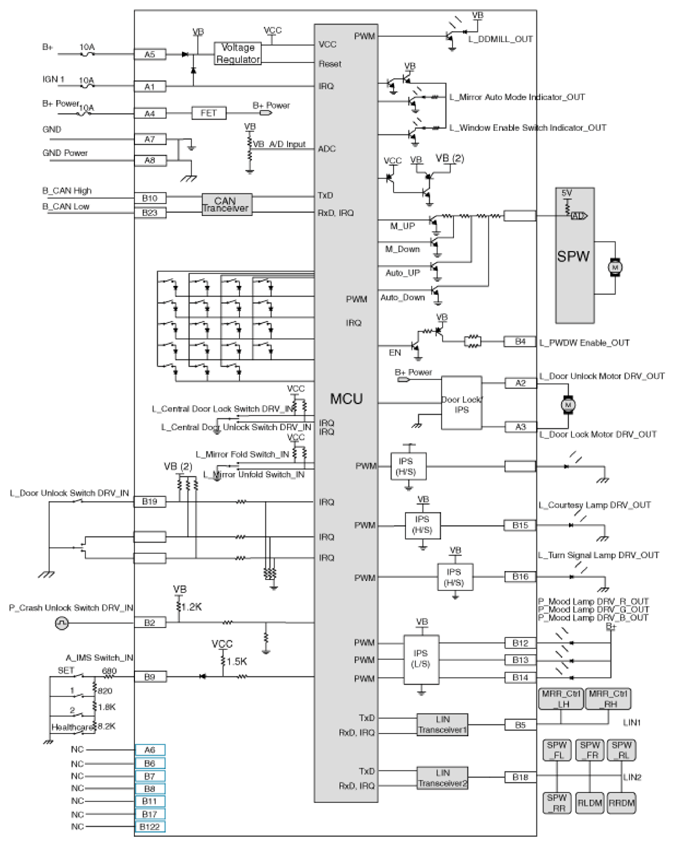

Driver Door Module (DDM)

G14236189Courtesy of HYUNDAI MOTOR AMERICA
