Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad panel [RH].

    (Refer to Body - "LOWER CRASH PAD PANEL [RH] ")

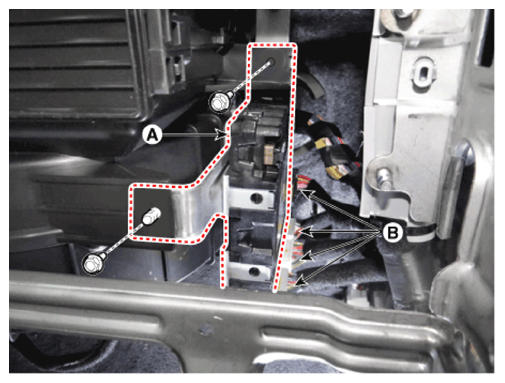

  3. Remove the IBU (A) after disconnecting the connectors (B) and loosening the bolts.
G14235918Courtesy of HYUNDAI MOTOR AMERICA
