Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim or rear door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

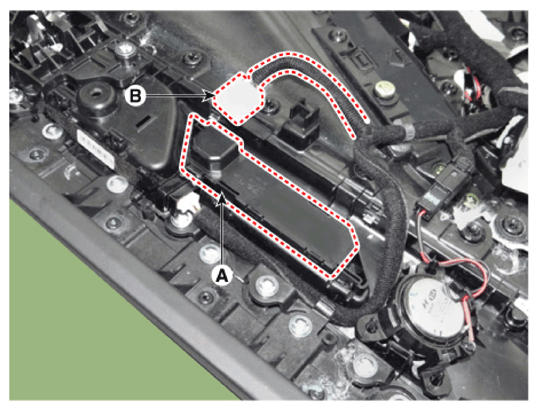

  3. Remove the memory power seat switch (A) after disengaging the mounting clips and disconnecting the connector (B).
G14235994Courtesy of HYUNDAI MOTOR AMERICA
