Repair Procedures: Inspection

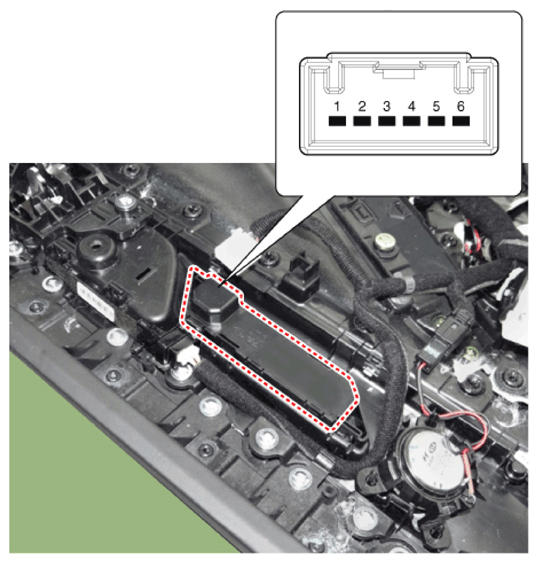

- Disconnect the memory power seat connector.
- When each switch is pressed, check the electric current between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.
| Switch | Connector Terminal | Resistance |
|---|---|---|
| SET | 1-5 | 680 Ω |
| Memory 1 | 1.5 kΩ | |
| Memory 2 | 3.3 kΩ | |
| Smart (Memory 3) | 11.5 kΩ | |
| DOOR | 11.5 kΩ |
