Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the lower crash pad.
(Refer to Body - "CRASH PAD ")
Remove the knee airbag.
(Refer to Restraint - "AIR BAG MODULE ")

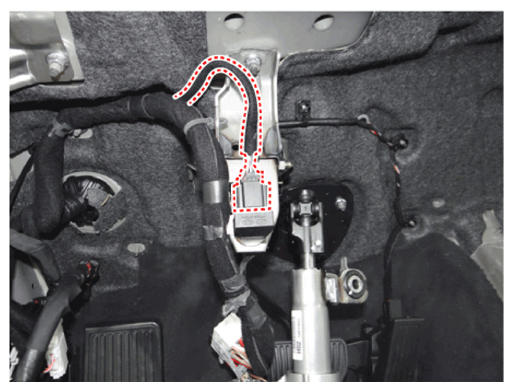

Disconnect the stop lamp switch connector.

Courtesy of HYUNDAI MOTOR AMERICA

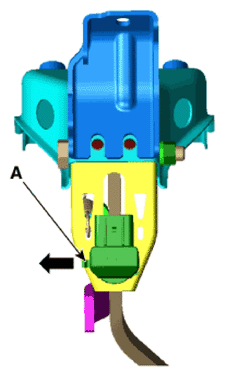

Pull the locking plate (A) as indicated by the arrow.

Courtesy of HYUNDAI MOTOR AMERICA

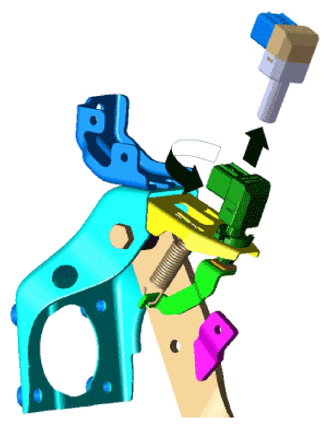

Turn stop lamp switch 45° counterclockwise and remove it.

Courtesy of HYUNDAI MOTOR AMERICA

Inspect a removed stop lamp switch along the below procedures.

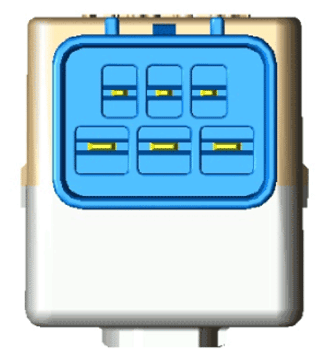

Confirm a normal connection with terminal part.

A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.

Courtesy of HYUNDAI MOTOR AMERICA

Perform the inspection of parts resistance.
