Front Brake Disc Thickness Check
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Check the brake pads for wear and fade.
- Check the brake disc for damage and cracks.

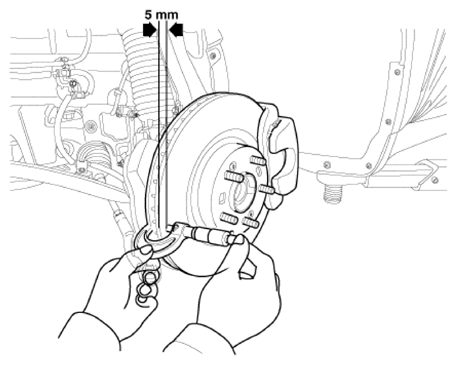

- Remove all rust and contaminating materials from the surface, and measure the disc thickness at the place of 5 mm from the outer circumference as shown in the figure below.
Standard value:
34.0 mm (1.34 in)
Service limit:
32.0 mm (1.26 in)
- If the wear of the disc exceeds the limit specification, replace the discs on the left and right side and pad assembly.
