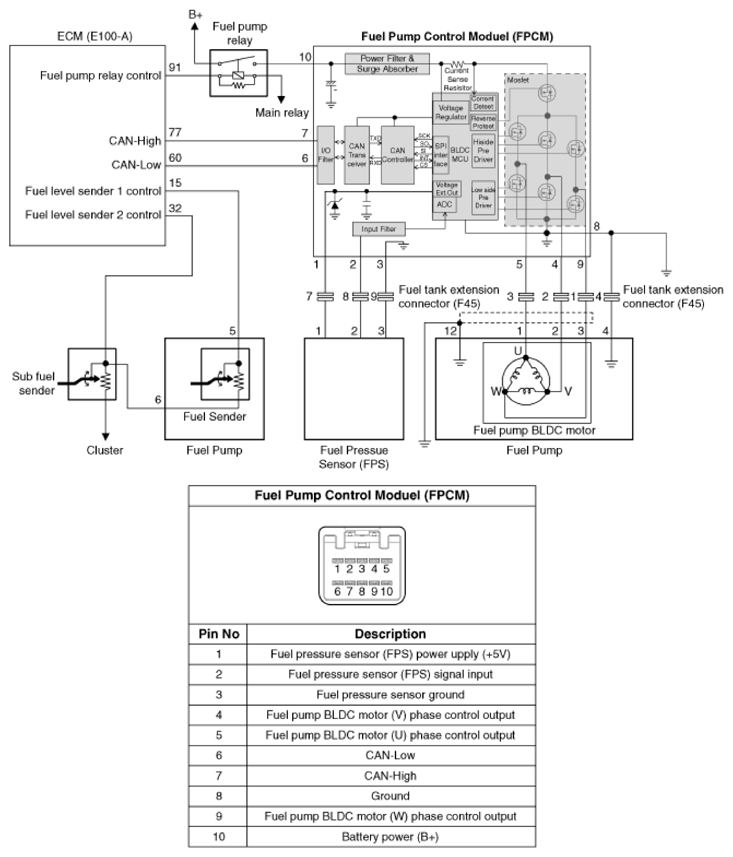

Home >> Genesis >> 2021 >> G90 3.3T Premium, RWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 3.3L >> Fuel Pump Control Module FPCM >> Schematic Diagrams >> Circuit Diagram
