Front Fuel Line
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and disconnect the negative (-) battery terminal.

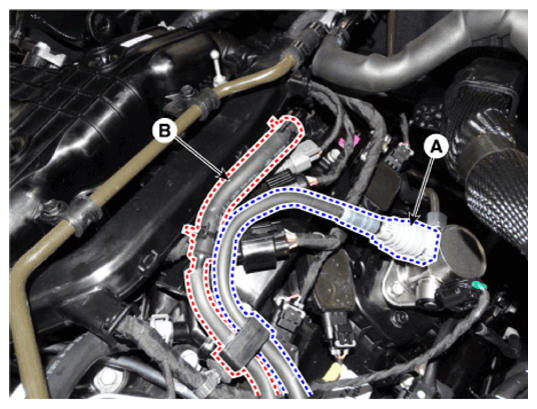

- Disconnect the fuel feed tube quick-connector (A).

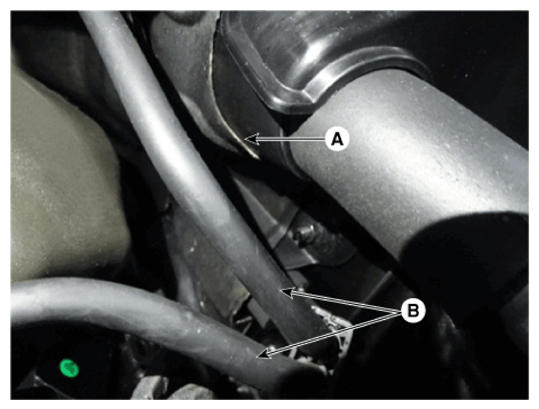

- Disconnect the vapor hose (B) which is connected from the PCSV.NOTE:

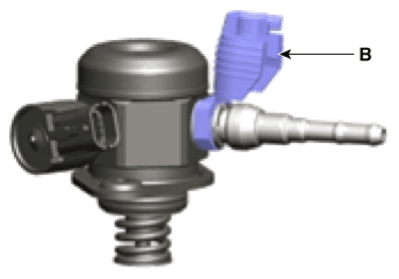

- Open the clamp cover (B) before disconnecting the quick connector. (If the clip is applied)

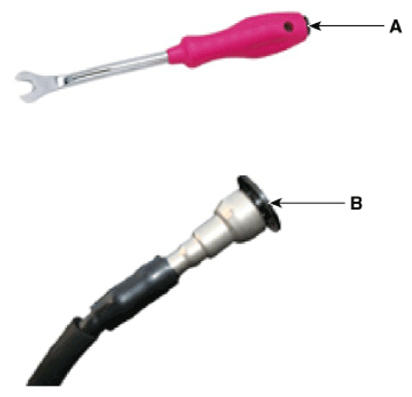

CAUTION:- When removing the quick-connector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, the fuel line leak can occur due to poor connection.
- Lift the vehicle.
- Remove the front-left wheel & tire and wheel house cover.

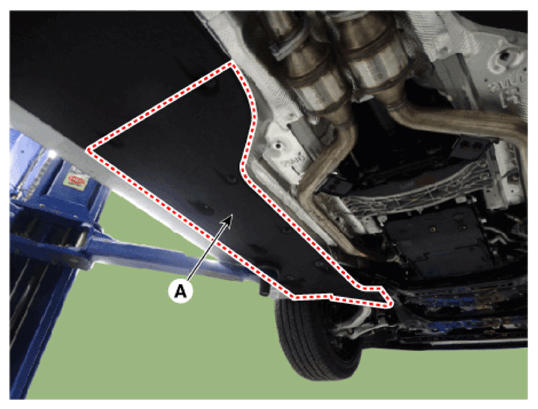

- Remove the front-left side under cover (A).

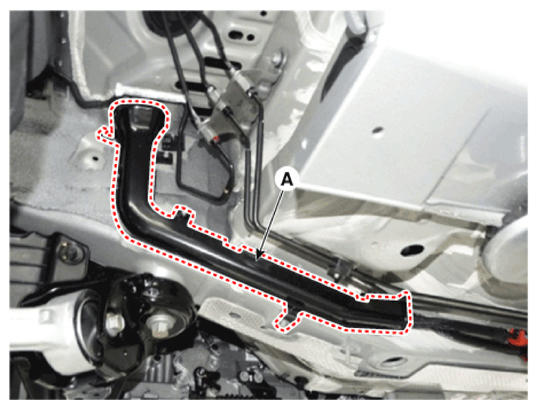

- Remove the fuel line protector (A) after removing mounting nuts.

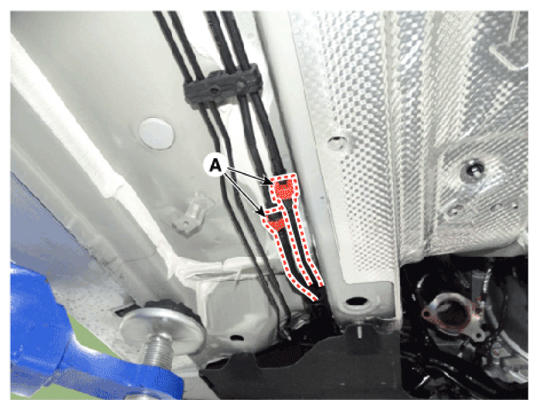

- Disconnect the front vapor and fuel tube line quick-connector (A).

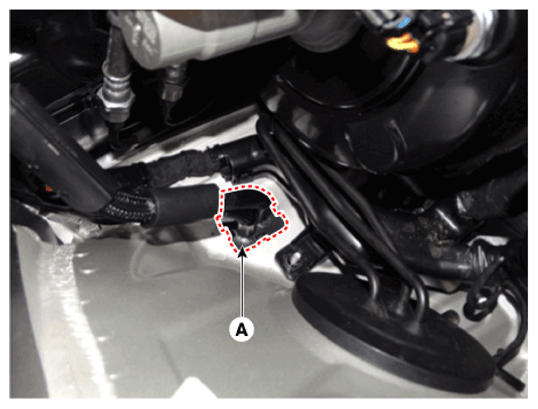

- Remove the front vapor and fuel feed tube bracket (A).
- Remove the noise barrier (A) after loosening the mounting bolt and nut.
- Remove the front vapor and fuel tube line (B).
