Repair Procedures: Removal

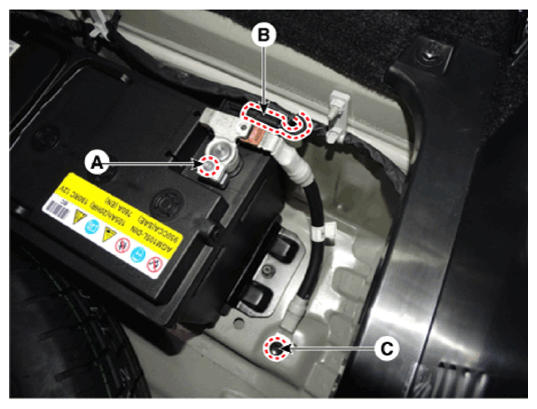

  1. Turn ignition switch OFF and remove the negative (-) battery cable mounting nut (A).
  2. Disconnect the battery sensor connector (B).
  3. Remove the battery sensor cable after removing the bolts (C).
    G14207778Courtesy of HYUNDAI MOTOR AMERICA
