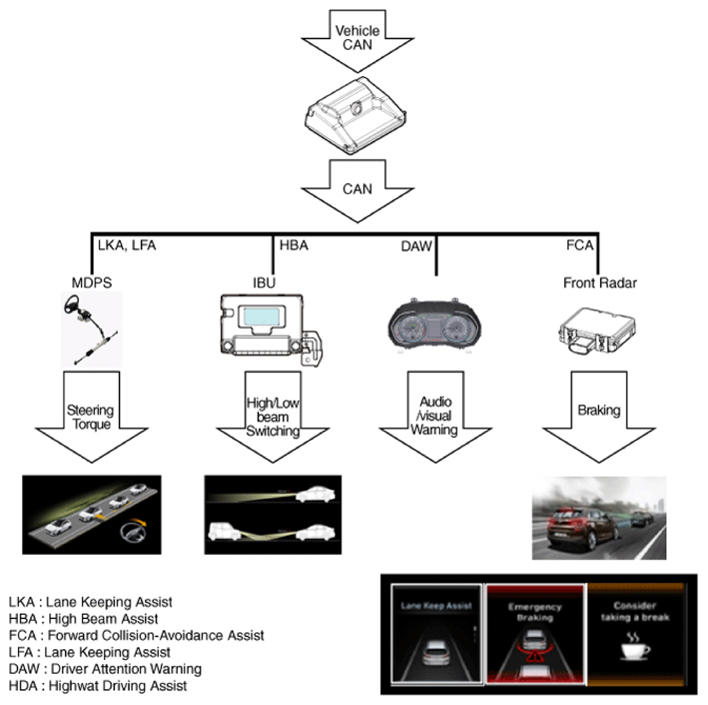

Block Diagram
CAUTION:
- This system monitors the driving situations through the radar and the camera. Thus, for a situation out of the sensing range, the system may not normally operate.
The System may be limited when:
- The radar sensor or camera is blocked with a foreign object or debris.
- The camera lens is contaminated due to tinted filmed or coated windshield, damaged glass, or stuck of foreign matter (sticker, bug, etc.) on the glass.
- Inclement weather such as heavy rain or snow obscures the field of view of the radar sensor or camera.
- The target in front is too small to be detected
- The vehicle in front is an oversize vehicle or trailer that is too big to be detected by the camera recognition system (for example a tractor trailer, etc.).
- The camera's field of view is not well illuminated (either too dark or too much reflection or too much backlight that obscures the field of view)
- The vehicle in front does not have their rear lights ON or their rear lights are located in an unusual location (modified).
- The windshield glass is fogged up and the clear view of the road has been obstructed.
