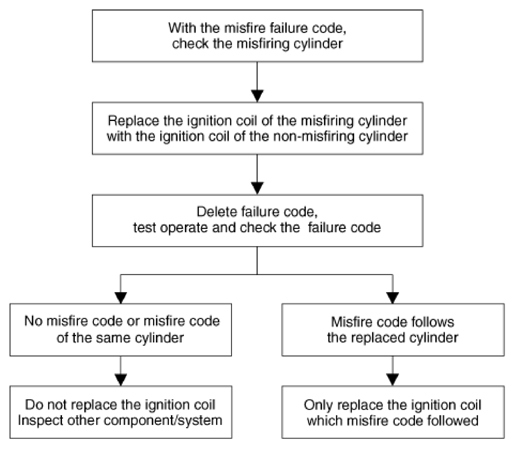

Test For Changing Position Of Each Ignition Coil

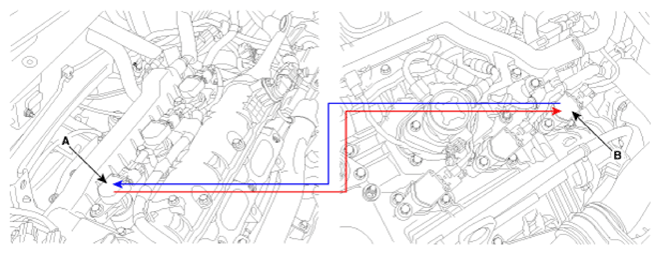

1. Ignition coil w/misfire code
2. Ignition coil w/o misfire code

NOTE:

• Do not move with spark plug at the same time (move the ignition coil only)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
