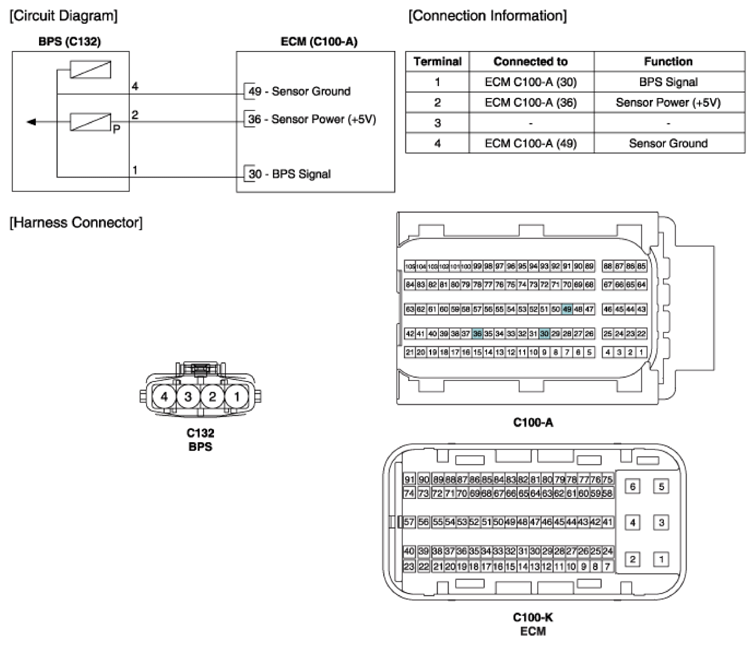

Home >> Genesis >> 2021 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Boost Pressure Sensor (BPS) >> Schematic Diagrams >> Circuit Diagram
