Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the propeller shaft.

    (Refer to Driveshaft and axle - "PROPELLER SHAFT ")

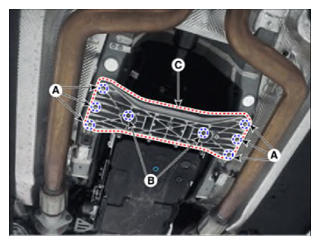

  3. Remove the transmission bracket (C) after loosening the mounting bolts (A, B).

    [2WD]

    G15547886Courtesy of HYUNDAI MOTOR AMERICA

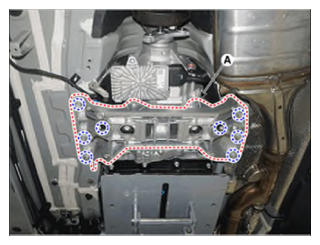

    [4WD]

    G15547887Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Support the transmission valve body cover lower part with a jack.

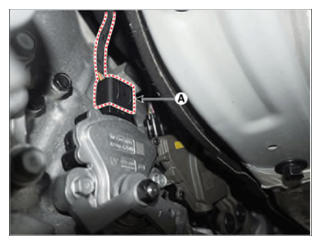

  4. Disconnect the parking switch connector (A).
    G15547888Courtesy of HYUNDAI MOTOR AMERICA

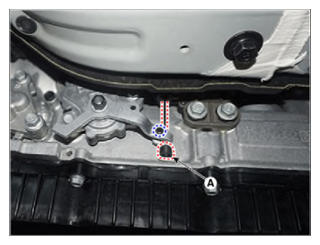

  5. Separate the parking release cable (A) after loosening the fastener.
    G15547889Courtesy of HYUNDAI MOTOR AMERICA

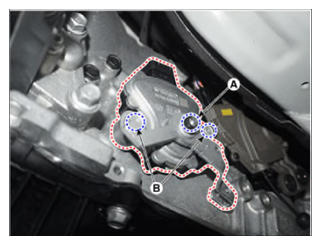

  6. Remove the parking switch after loosening the mounting nut (A) and bolts (B).
    G15547890Courtesy of HYUNDAI MOTOR AMERICA
