Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

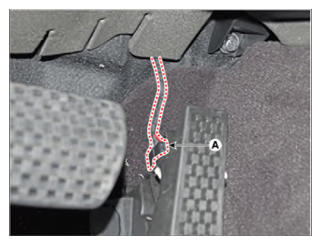

  2. Disconnect the accelerator position sensor connector (A).
    G15557259Courtesy of HYUNDAI MOTOR AMERICA

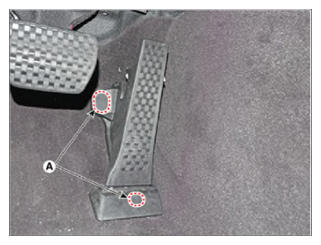

  3. Remove the mounting caps (A).
    G15557260Courtesy of HYUNDAI MOTOR AMERICA

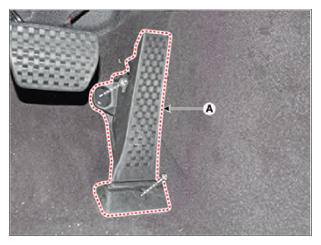

  4. Remove the accelerator pedal (A) after loosening the mounting bolt and nut.

    Tightening torque:

    8.9 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft))

G15557261Courtesy of HYUNDAI MOTOR AMERICA
