Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.

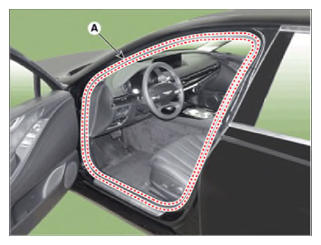

- Remove the front door side weatherstrip (A).
- Remove the front door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
- Remove the hood latch release handle.
(Refer to Hood - "HOOD LATCH RELEASE HANDLE ")

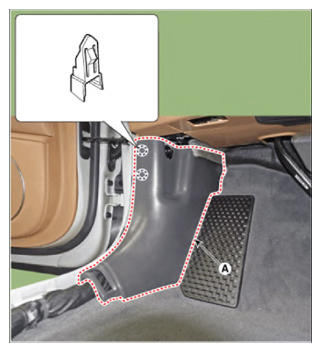

- Using a screwdriver or remover, remove the cowl side trim (A).
- Install in the reverse order of removal.
Information
- Replace any damage clips.
