Components and Components Location: Components: AWD

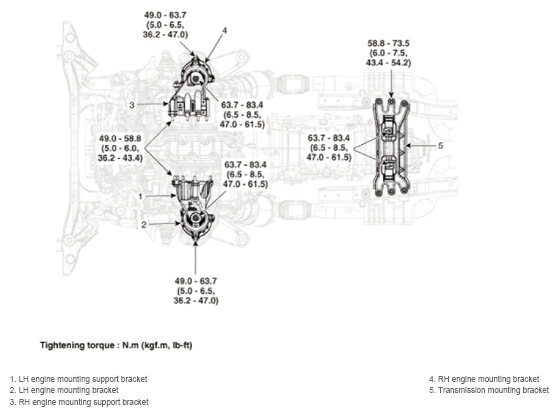

Fig 1: Engine Mounting Components Location With Torque Specification (AWD)

G15555485

Courtesy of HYUNDAI MOTOR AMERICA
