LEMON Manuals
: Even more car manuals for everyone
Home
>>
Genesis
>>
2021
>>
G80 3.5T Prestige, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 3.5L (7 Of 9)
>>
DTC P064A-00: Fuel Pump Control Module
>>
Troubleshooting
>>
Diagnostic Flow-chart
Diagnostic Flow-chart

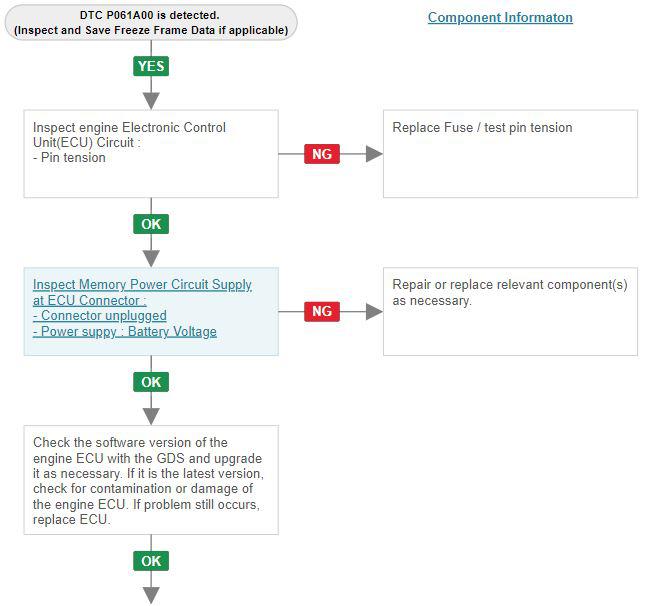

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

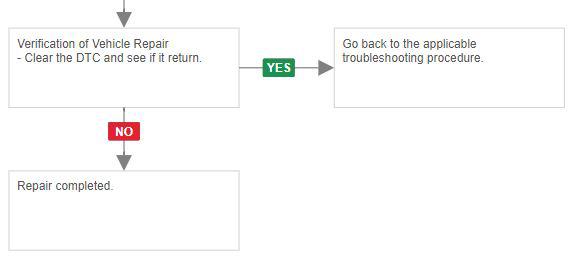

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
