Charging System: Alternator

Item Specification
Rated voltage 13.5V, 180A
Speed in use 0 - 18, 000 RPM
Pin 1 (LIN)
Pulley Type OAP pulley

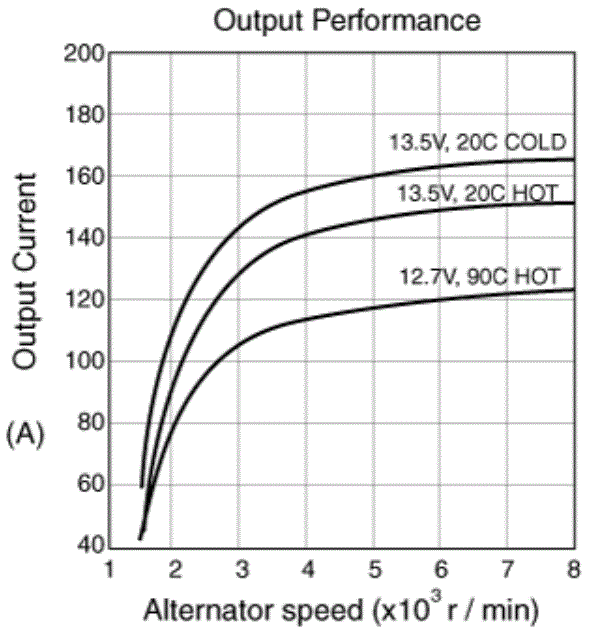

G15556010Courtesy of HYUNDAI MOTOR AMERICA
