Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:

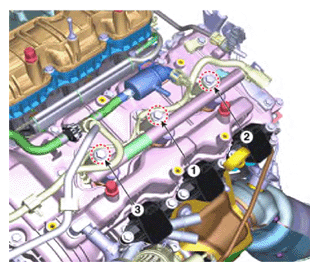

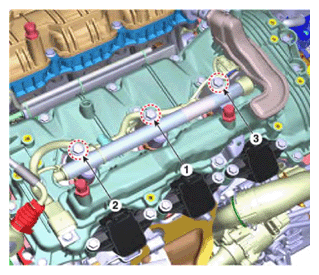

- When tightening the high-pressure delivery pipe bolt, refer to the figure below.
NOTE:

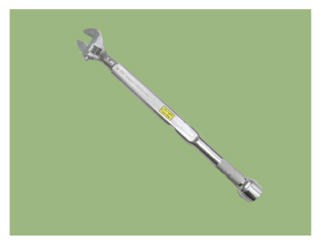

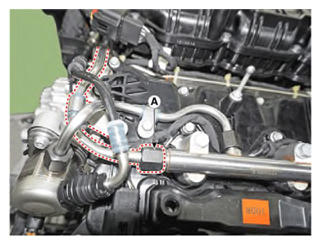

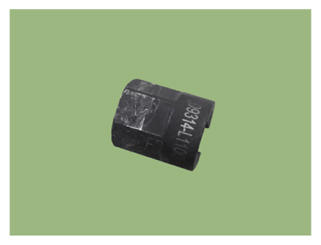

- Use the SST (09314-L1100) and spanner torque wrench (27 mm) to install the high pressure fuel pipe flange (A).
- Do not reuse the high pressure fuel pipe.
- Be careful not to transform the shape of the high pressure fuel pipe.
- Torque wrench should not be tilt when you tighten the nut.
- Follow the order and the tightening torque when you assemble.
- Inspect fuel leakage after high pressure fuel pipe assembly.
