[Bank 1]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the RH air duct and RH air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")

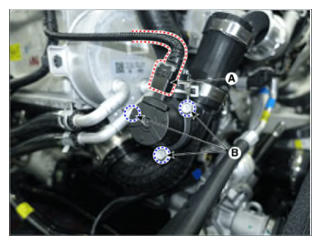

- Disconnect the RCV control solenoid valve connector (A).
- Remove the installation bolt (B), and then remove the electric RCV control solenoid valve.
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
