Charging System - 3.5L: Alternator: Specifications: Specification

Item	Specification
Rated voltage	13.5V, 180A
Speed in use	0 - 18, 000 RPM
Pin	1 (LIN)
Pulley Type	OAP pulley

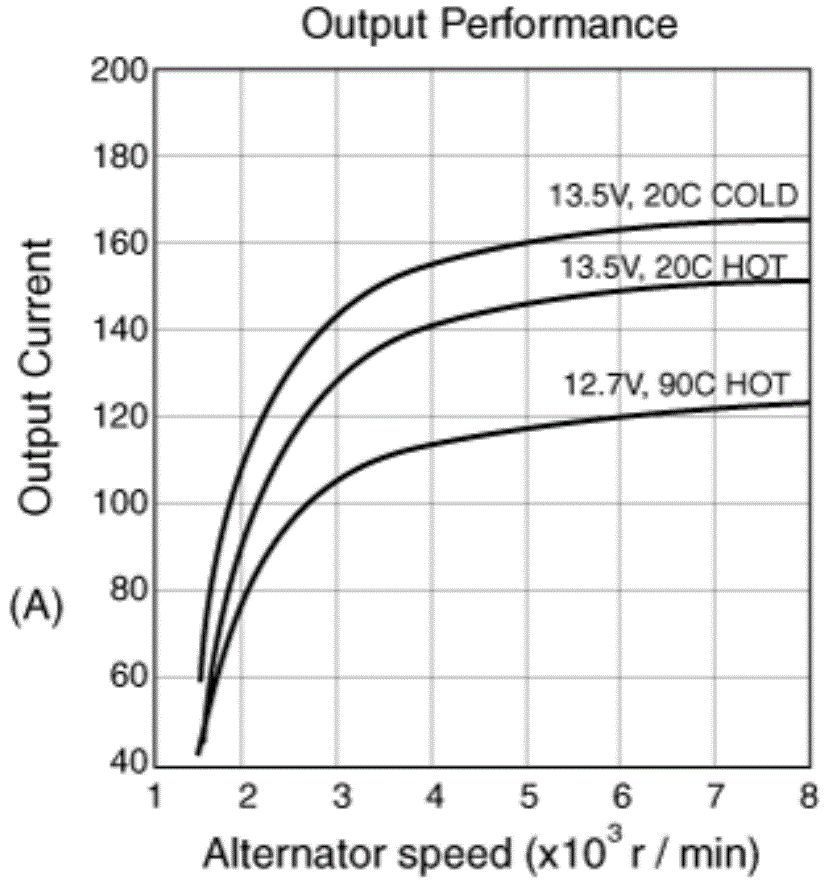

G15556037

Courtesy of HYUNDAI MOTOR AMERICA
