Repair Procedures: Disassembly

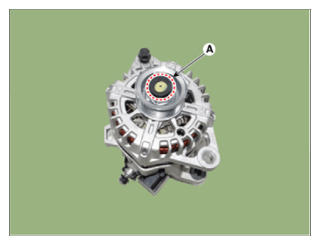

  1. Remove the OAP cap (A).
    G15556042Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAP cap.

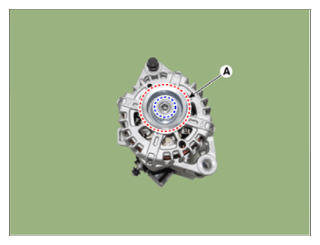

  2. Remove the pulley (A) after loosening the pulley nut.
    G15556043Courtesy of HYUNDAI MOTOR AMERICA

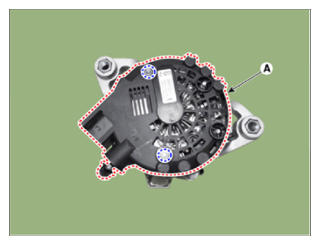

  3. Remove the alternator cover (A) after loosening the mounting nut.
    G15556044Courtesy of HYUNDAI MOTOR AMERICA

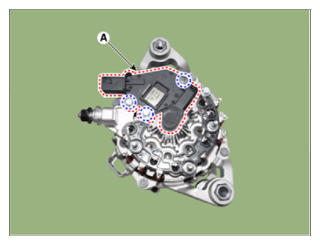

  4. Remove the brush holder assembly (A) after loosening the mounting bolt and nut.
    G15556045Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the slip ring guide (A).
    G15556046Courtesy of HYUNDAI MOTOR AMERICA

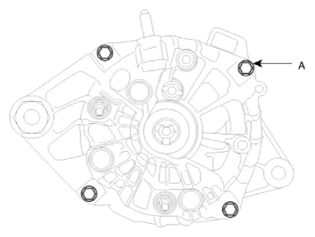

  6. Remove the 4 through bolts (A).
    G15556047Courtesy of HYUNDAI MOTOR AMERICA

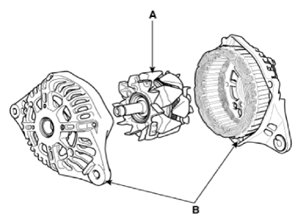

  7. Separate the rotor (A) and cover (B).
    G15556048Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
