Home >> Genesis >> 2021 >> G80 3.5T Prestige, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> HYUNDAI Digital Key System >> Bluetooth Low Energy (BLE) Unit >> Components And Components Locations >> Components

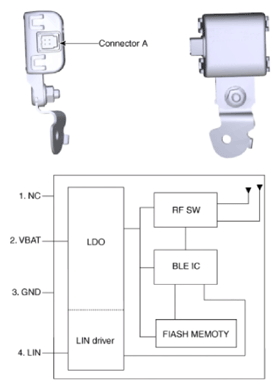

Components And Components Locations: Components

G15554933Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description
G14932234Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 Battery (+)
3 Ground
4 L1N
