Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Open the trunk and remove the luggage side trim [LH]. (Refer to Body - "LUGGAGE SIDE TRIM ")

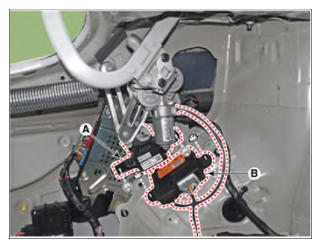

Loosen the mounting nuts, remove the fuel pump control module (A) and power trunk actuator (B).

Courtesy of HYUNDAI MOTOR AMERICA

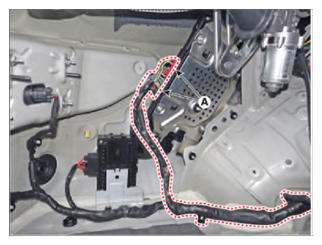

Disconnect the external amp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

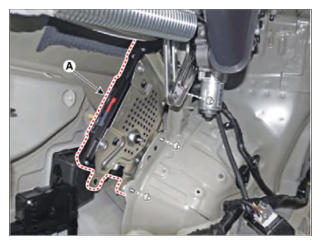

Loosen the mounting nuts and remove the external amp (A).

Courtesy of HYUNDAI MOTOR AMERICA
