Repair Procedures: Removal
CAUTION:
- Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
- Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.
- Be careful not to scratch the door trim and other parts.
- Disconnect the negative (-) battery terminal.
- Remove the front door trim. (Refer to Body - "FRONT DOOR TRIM ")

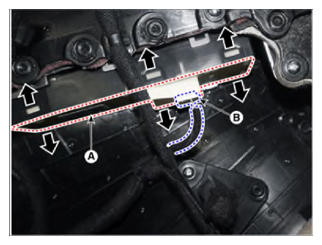

- Remove the driver door module (A) after loosening the mounting screws and disconnecting the connectors (B).
