Transmission mounting assembly

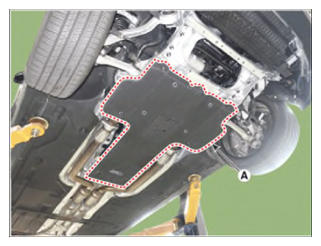

- Remove the engine room rear under cover (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Install the jack under the transmission to support the transmission.
NOTE:
- Install the jack under the transmission to support the transmission.
- Remove the transmission mounting assembly (A)
Bolts, Nuts (B):
2WD (Nuts): 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)
AWD (Bolts): 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)
Bolts (C): 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)
- Installation is in the reverse order of removal.
