Repair Procedures: Replacement
- Remove the wheel and tire.
- Remove the valve core and deflate the tire.

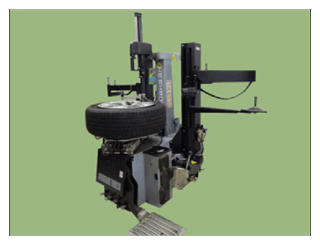

- Install the wheel tire to the tire change machine.

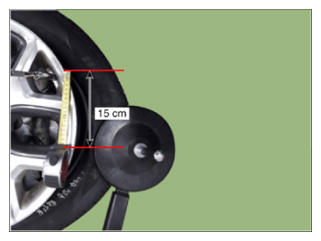

- Push the tire as the illustration below.

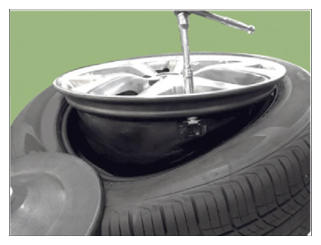

- Remove the TPMS sensor by loosening the nut.CAUTION:
- The clamp type TPMS sensor can be reused.

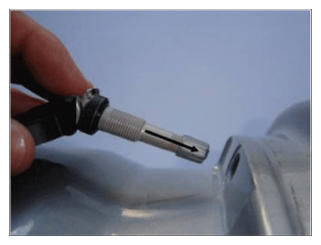

- Push the TPMS sensor into the valve hole on the rim.NOTE:
- Position sensor housing horizontal to the plane of rim well.

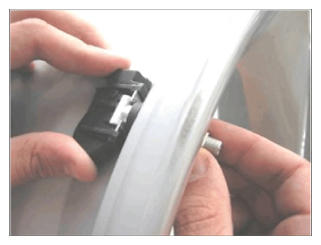

- Position TPMS sensor axis coaxial with rim valve hole axis.
- Pre-assemble the nut on the TPMS sensor.
- Tighten the TPMS sensor nut.
Tightening torque:
7.0 - 9.0 N.m (0.7 - 0.9 kgf.m, 5.2 - 6.6 lb.ft)
NOTE:- The TPMS sensor fixing nut must not be reused.
- Must assemble TPMS sensor without inclination in the right or left direction.
- Gap between TPMS sensor housing and rim must be within 2.5 mm (0.0984 in).
- TPMS sensor must be safe from harmful impact.
Recommended Tire pressure
Front: 230 kPa (33 psi)
Rear: 250 kPa (36 psi)
