Repair Procedures: Inspection
- Turn the ignition switch ON.

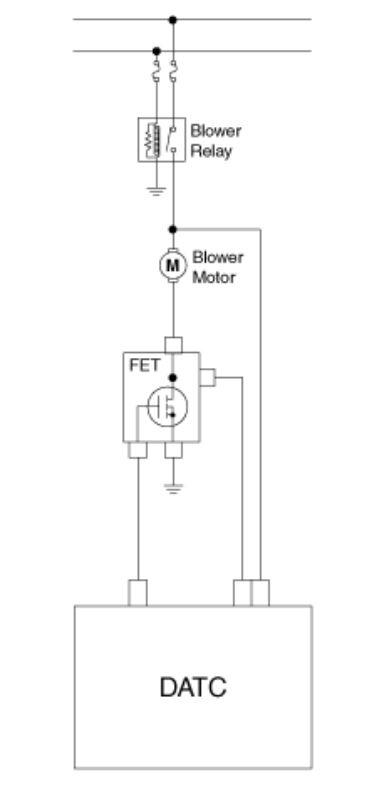

- Manually operate the control switch and control the voltage of the blower motor.
- Select the control switch to raise the voltage until high speed.
[REAR ON]
FAN SPEED AND MANUAL CONTROL VOLTAGE SPECIFICATIONS
| Fan Speed | Manual control voltage | |
|---|---|---|
| Floor, MIX | Not Floor, MIX, VENT, B/L | |
| 1 | 3.8V | 3.5V |
| 2 | 4.5V | 4.5V |
| 3 | 5.4V | 5.4V |
| 4 | 6.3V | 6.3V |
| 5 | 7.6V | 7.6V |
| 6 | 9.4V | 9.4V |
| 7 | 11.3V | 11.3V |
| 8 | BATTERY (B+) | |
[REAR OFF]
* Manual fan speed: 8 speed (3.4V - B+)
FAN SPEED AND MANUAL CONTROL VOLTAGE SPECIFICATIONS
| Fan Speed | Manual control voltage | |
|---|---|---|
| Floor, MIX | Not Floor, MIX, VENT, B/L | |
| 1 | 3.8V | 3.5V |
| 2 | 4.5V | 4.3V |
| 3 | 4.9V | 4.9V |
| 4 | 5.7V | 5.7V |
| 5 | 6.9V | 6.9V |
| 6 | 8.7V | 8.7V |
| 7 | 10.6V | 10.6V |
| 8 | BATTERY (B+) | |
* Auto fan speed: Stepless (4.0V- B+)
