Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

  2. Remove the front oil seal (A).
    G15555534Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the new front oil seal.
    1. Apply engine oil on the edge of new oil seal.
      NOTE:
      • Remove any foreign substances from the lip portion of the oil seal.

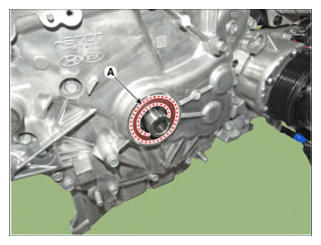

    2. Using the SST (09231-3C100), install a new front oil seal (A).
      G15555535Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Do not reuse the front oil seal.
  4. Install in the reverse order of removal.
