Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

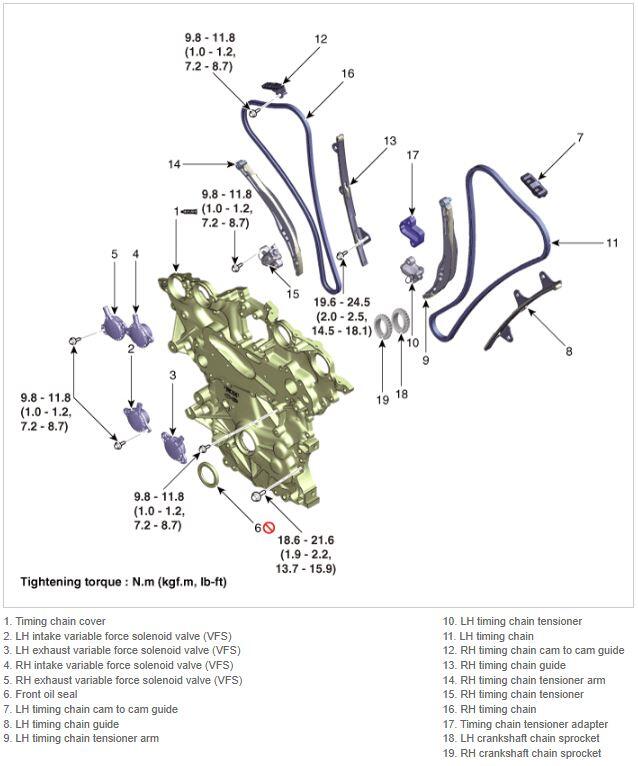

Fig 1: Timing Chain Components Location With Torque Specifications
G15555533Courtesy of HYUNDAI MOTOR AMERICA
