Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (6 Of 6) >> DTC U015C-F1: Lost Communication With Automated Driving System Control Module 'A' >> Troubleshooting >> Diagnostic Flow-chart

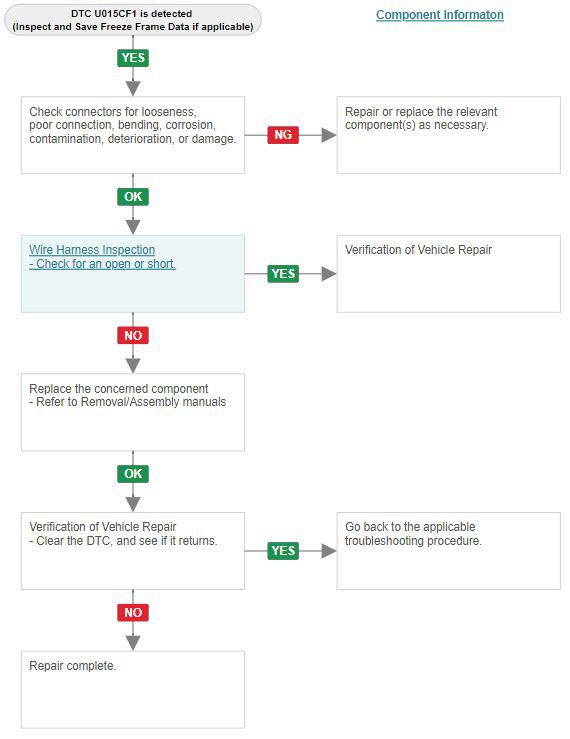

Diagnostic Flow-chart

G15568637Courtesy of HYUNDAI MOTOR AMERICA
