Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (6 Of 6) >> DTC P2195-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 1) >> Troubleshooting >> Diagnostic Flow-chart

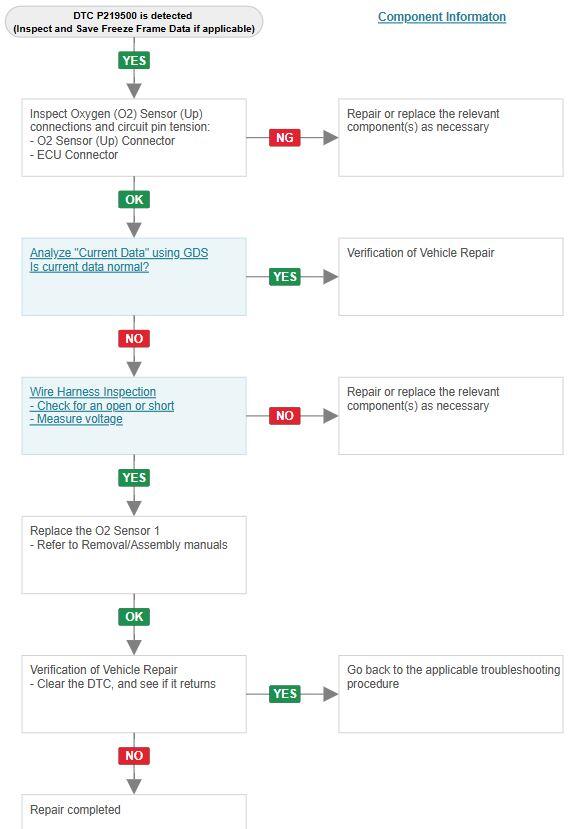

Diagnostic Flow-chart

G15568462Courtesy of HYUNDAI MOTOR AMERICA
