Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to Fuel Delivery System - "FUEL PUMP ")

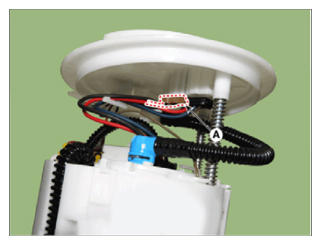

  2. Disconnect the fuel sender connector (A).
    G15547514Courtesy of HYUNDAI MOTOR AMERICA

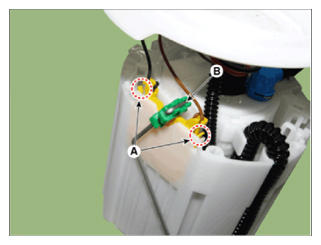

  3. Remove the fuel sender (B) after releasing the fixing hooks (A).
    G15547515Courtesy of HYUNDAI MOTOR AMERICA

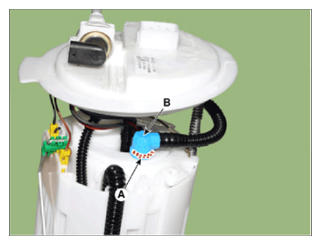

  4. Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).
    G15547516Courtesy of HYUNDAI MOTOR AMERICA

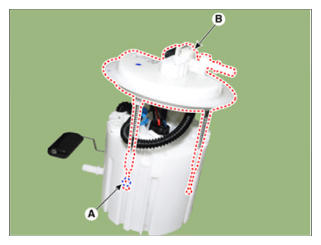

  5. Remove the head assembly (B) after releasing the fixing clip (A).
    G15547517Courtesy of HYUNDAI MOTOR AMERICA

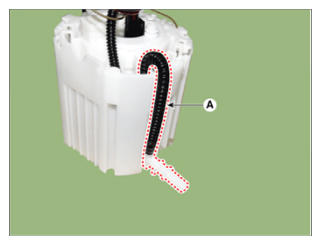

  6. Remove the suction port (A) from the reservoir cap.
    G15547518Courtesy of HYUNDAI MOTOR AMERICA

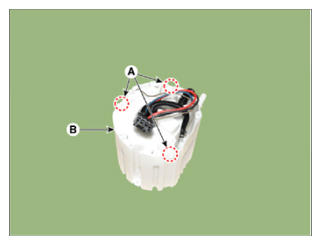

  7. Remove the reservoir-cup (B) after releasing the fixing hooks (A).
    G15547519Courtesy of HYUNDAI MOTOR AMERICA

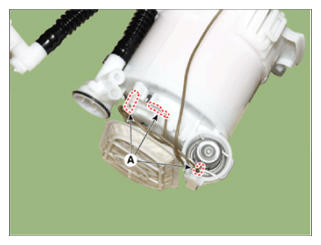

  8. Disconnect the ground cable (A).
    G15547520Courtesy of HYUNDAI MOTOR AMERICA

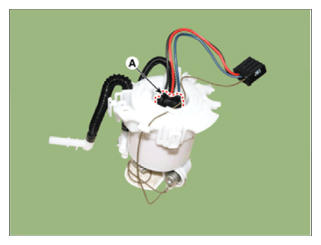

  9. Disconnect the fuel pump motor connector (A).
    G15547521Courtesy of HYUNDAI MOTOR AMERICA

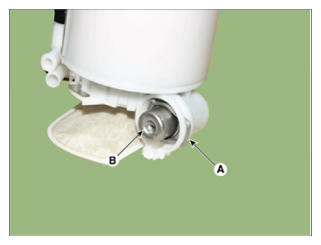

  10. Release the fixing hooks (A) and then remove fuel pressure regulator (B).
    G15547522Courtesy of HYUNDAI MOTOR AMERICA

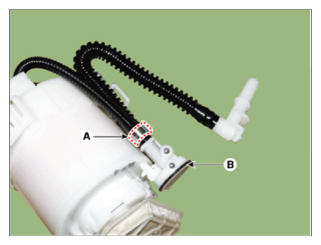

  11. Remove the clamp (A) and remove the suction port (B).
    G15547523Courtesy of HYUNDAI MOTOR AMERICA

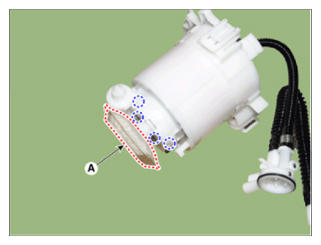

  12. Release the fixing hooks and then remove pre-filter (A).
    G15547524Courtesy of HYUNDAI MOTOR AMERICA

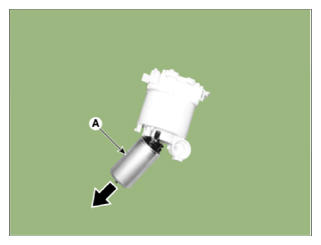

  13. Remove the fuel pump motor (A) in the direction of an arrow.
    G15547525Courtesy of HYUNDAI MOTOR AMERICA
    G15547526Courtesy of HYUNDAI MOTOR AMERICA
