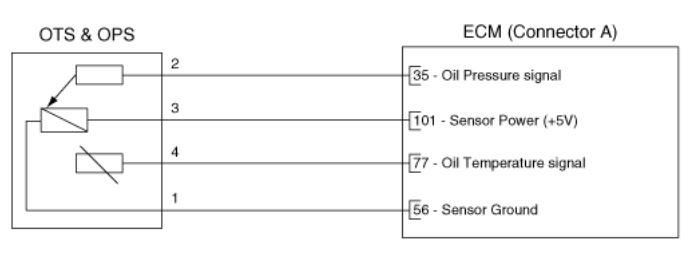

Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.5L >> Oil Pressure & Oil Temperature Sensor (OPTS) >> Schematic Diagrams >> Circuit Diagram
