Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

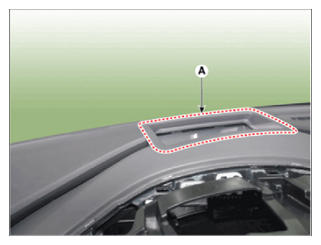

  2. Remove the head up display bezel (A).
    G15554912Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the instrument cluster.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

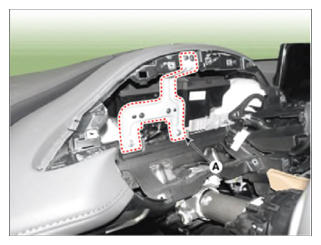

  4. Remove the head up display unit bracket (A) after loosening mounting nut and screws.
    G15554913Courtesy of HYUNDAI MOTOR AMERICA

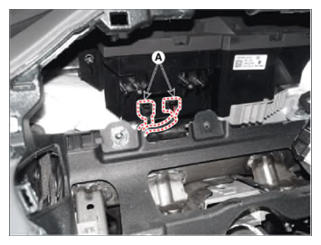

  5. Disconnect the HUD connector (A).
    G15554914Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the main crash pad assembly.

    (Refer to body - "MAIN CRASH PAD ASSEMBLY ")

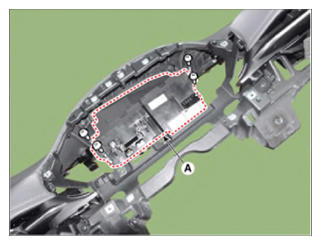

  7. Remove the HUD unit (A) after loosening mounting screws.
    G15554915Courtesy of HYUNDAI MOTOR AMERICA
