Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

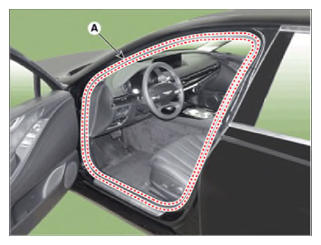

Remove the mounting clips, remove both front door body side weatherstrip (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad side cover (A).

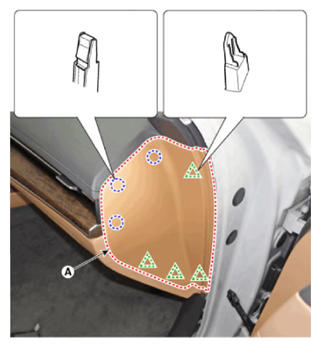

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

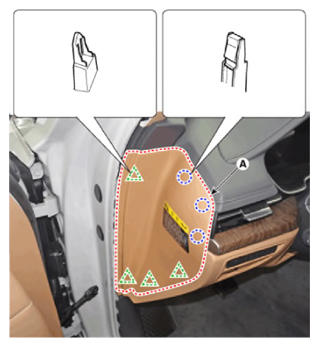

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damage clips.
